Dr. ZEE Custom Musical Instruments and Equipment Workshop - EVERY INSTRUMENT DESERVES LOVE!
Dr. ZEE WORKSHOP: Custom Studio Recording and Audio Equipment Projects.
Dr. ZEE Workshop Transformer Balanced / Unbalanced
Two Way Master Recorder Interconnection Unit.

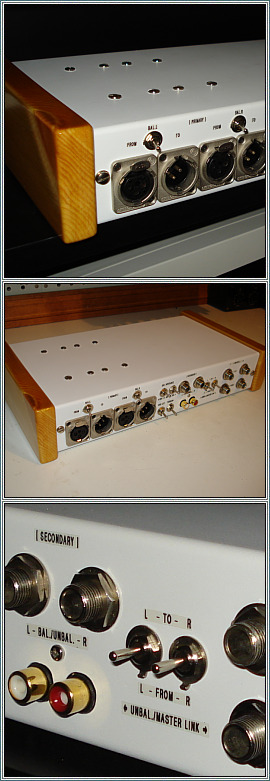

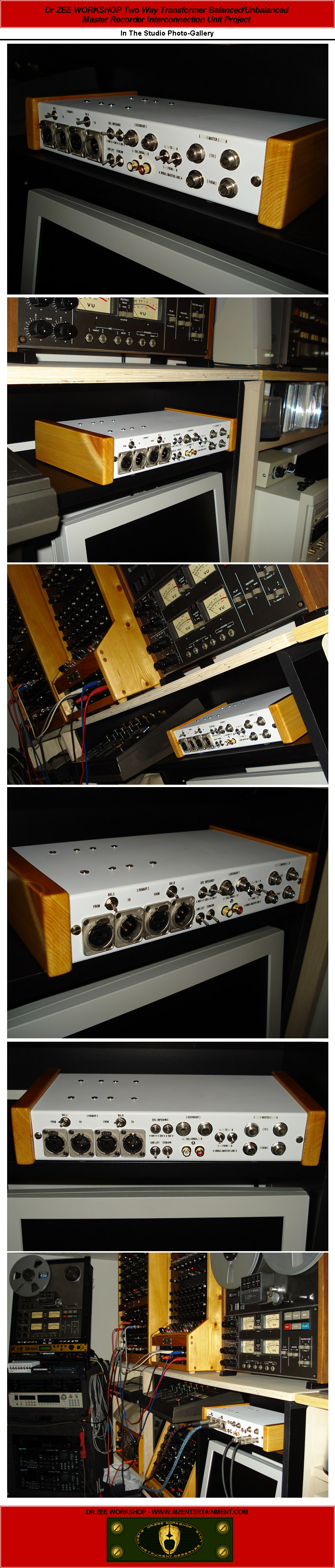

Click to View In The Studio Photos

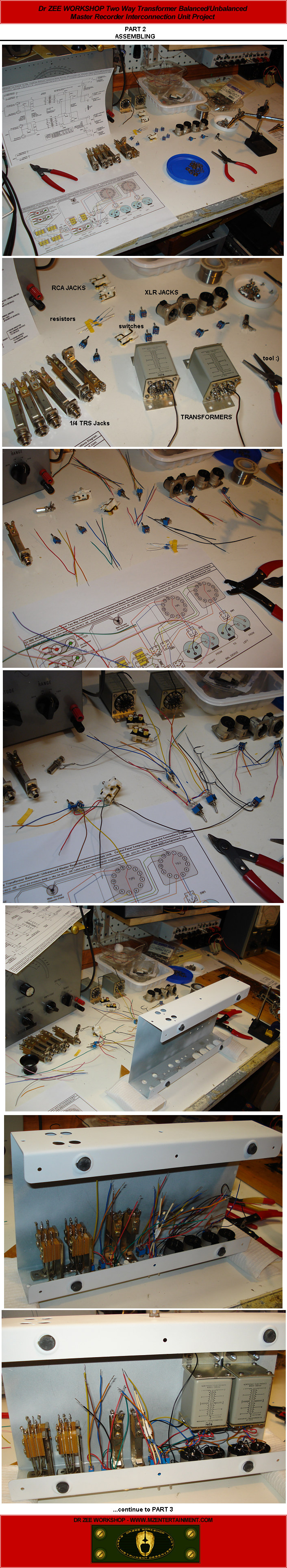

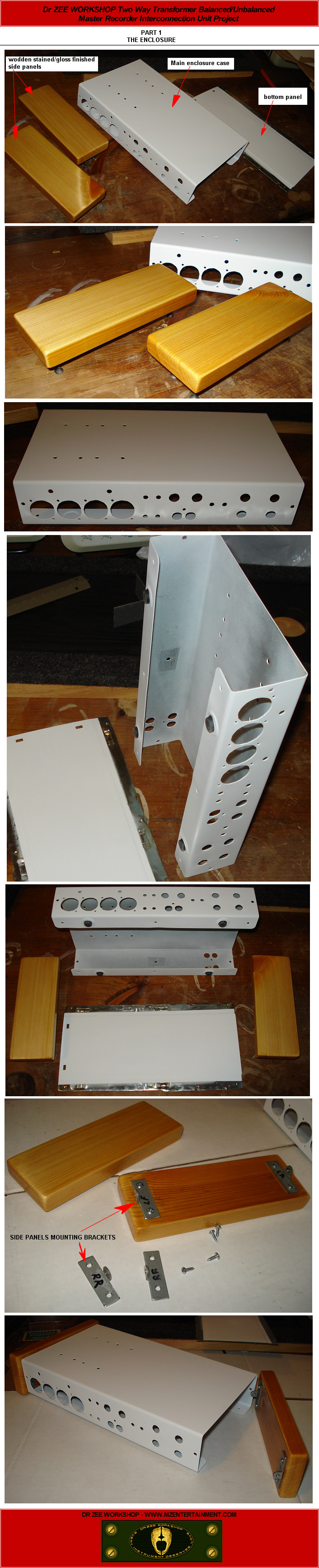

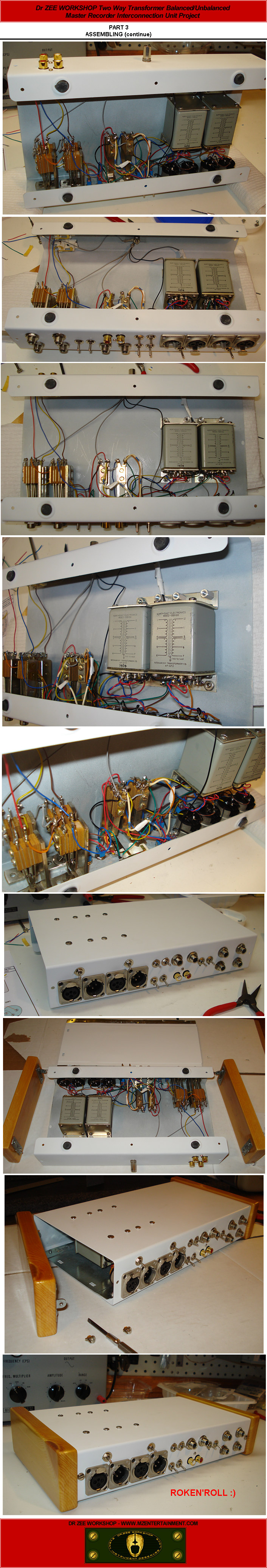

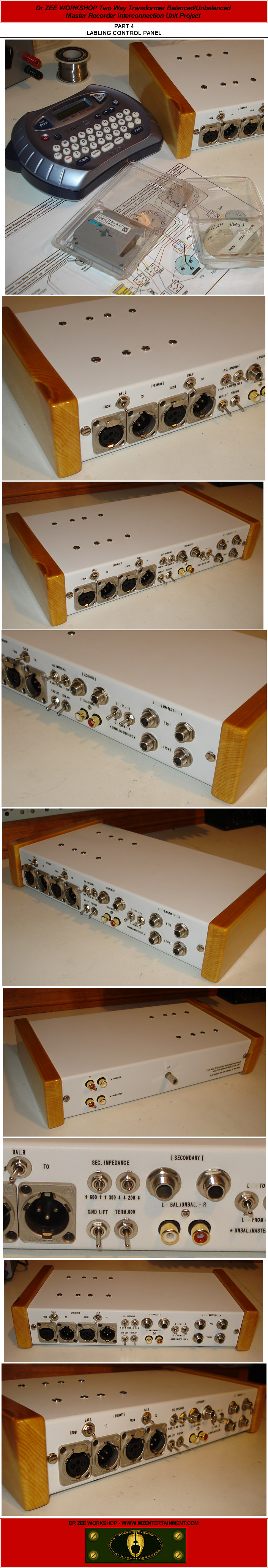

Dr ZEE WORKSHOP Master Recorder Interconnection Unit Features:
Two channel two way Transformer balanced / unbalanced interconnection.
Utilizing two UTC A-20 or NESHAMINY AF-672 Audio Transformers
XLR Balanced IN/OUT Connectors
1/4" TRS Balanced/Unbalanced Connectors
RCA Unbalanced Connectors
Primary Impedance 600 Ohms
Selectable Secondary Impedance: 600 / 300 / 200 Ohms
Switchable 600 Ohms Secondary termination.
Switchable Ground Lift for XLR Connectors
1/4" and RCA Connectors for Master Recorder
Switchable Link between Secondary Unbalanced and Master Recorder
*****
Designed for Studio Recording Application,
Application example: interconnection between recording console main balanced outputs or other devices with balanced output with unbalanced inputs of unalog master tape recorder.

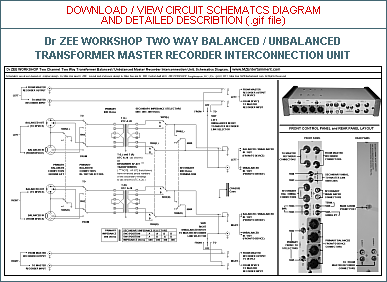

CLICK HERE TO DOWNLOAD / VIEW SCHEMATICS CIRCUIT DIAGRAM and DETAILS
