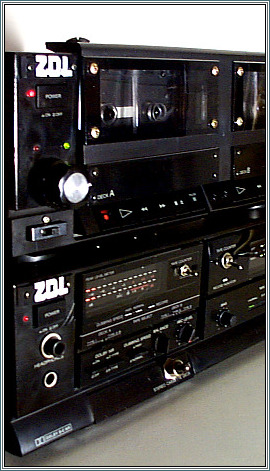

Dr. ZEE Workshop ZDL CTD-105 Cassette Tape Delay System
CLICK to SEE Recording Set-Up Details and Listen To Audio-Samples
ZDL CTD-105 is Analog Cassette Tape Delay system.
Based on two modified and re-arranged cassette tape recorders.
The main concept is to run tape from one cassette deck into another, where the first deck set in record mode while the second - in playback.
The system consists of Tape Transport Unit with tape speed control and Electronics (Record / Playback Amplifiers) Unit.
For details see the following photos and charts:

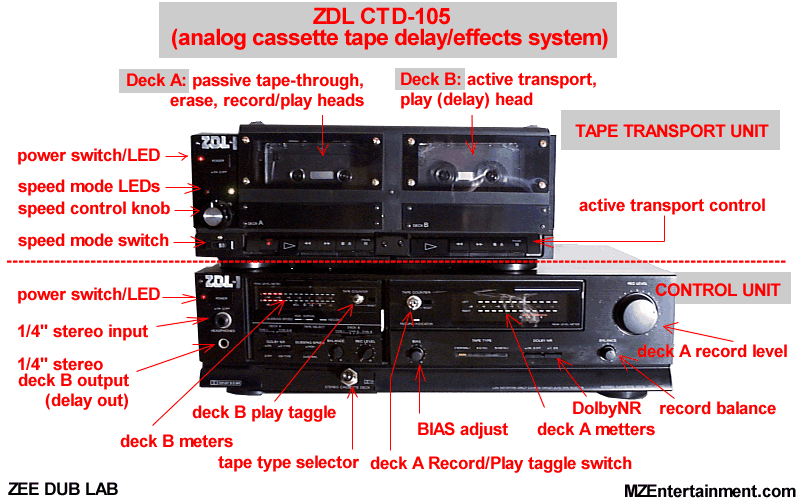

ZDL CTD-105 Front Controls

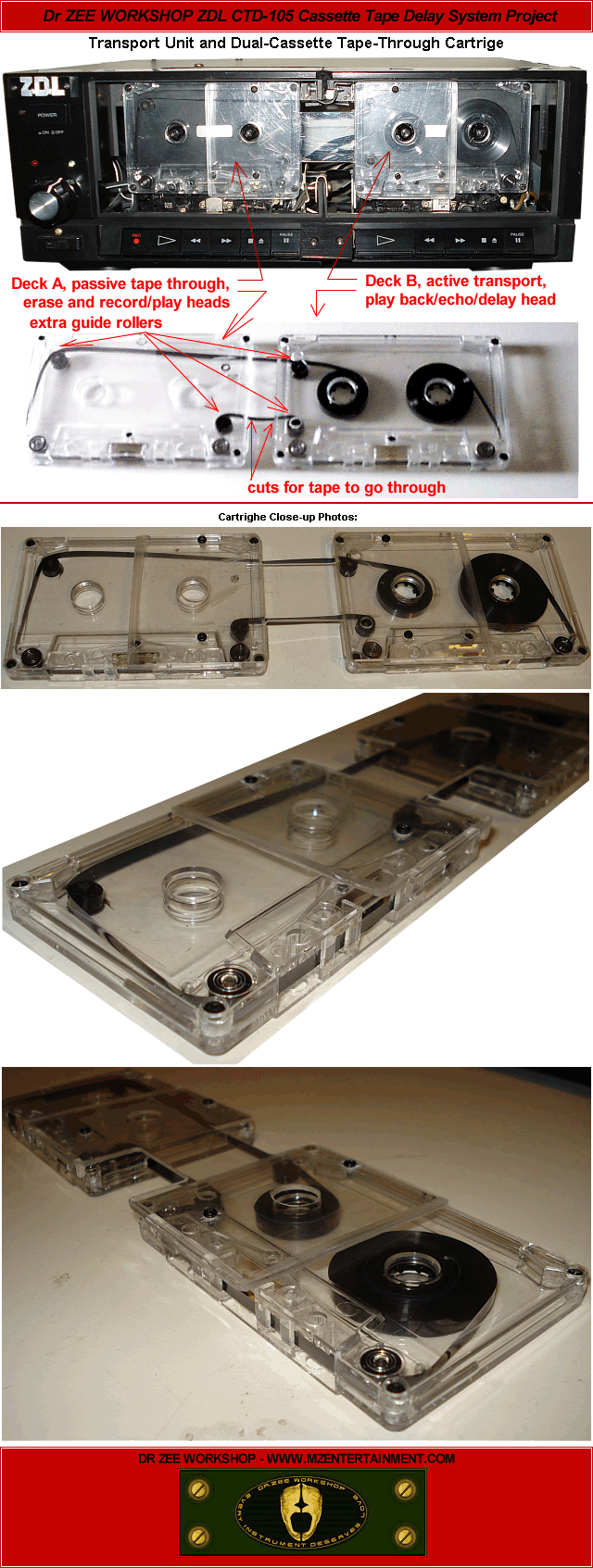

ZDL CTD-105 Double Cassette (cartridge) and transport

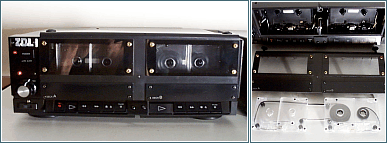

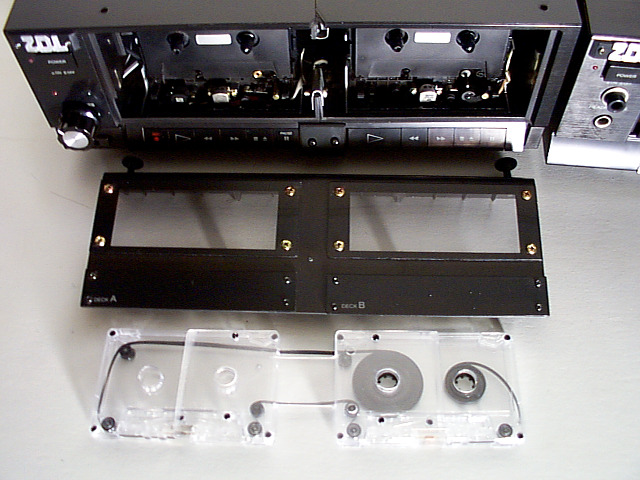

ZDL CTD-105 Cassette cartridge, cassette cover and transport

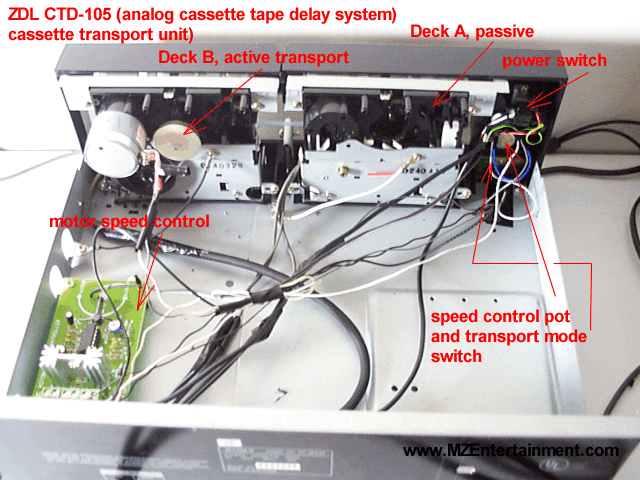

ZDL CTD-105 Transport Unit Inside

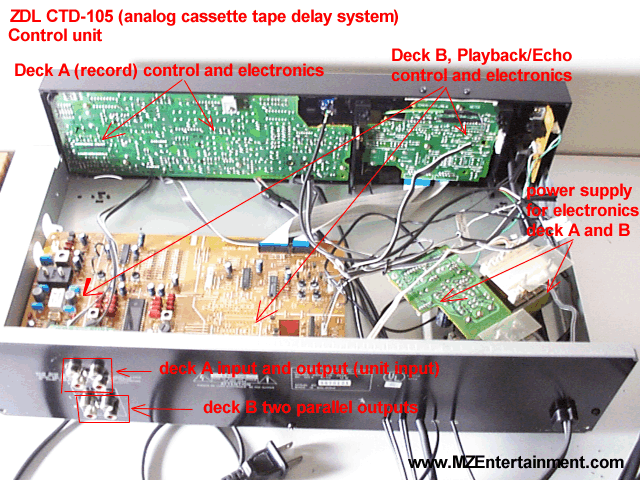

ZDL CTD-105 Control Unit Inside Photo 1

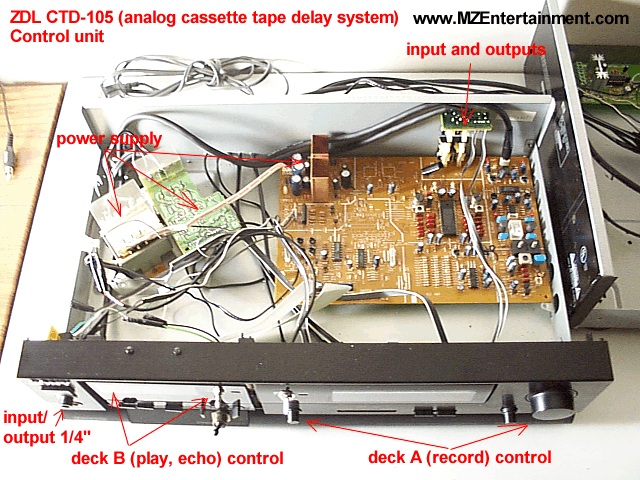

ZDL CTD-105 Control Unit Inside Photo 2

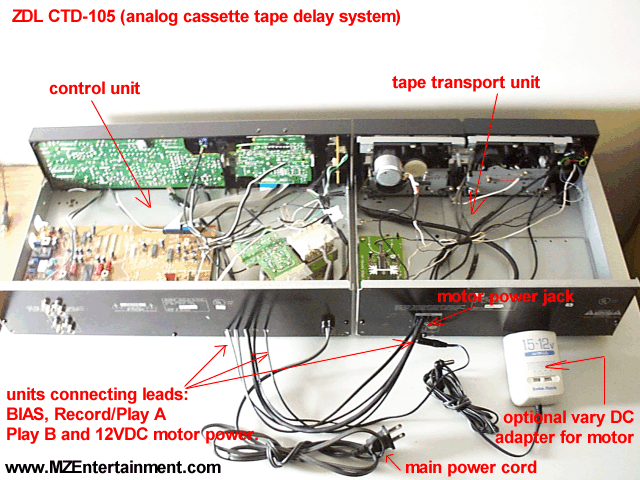

ZDL CTD-105 Both Units Connected Inside View

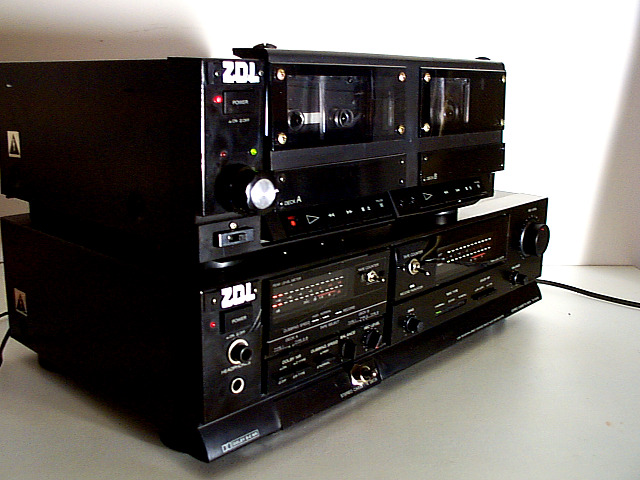

ZDL CTD-105 System Gallery Photo

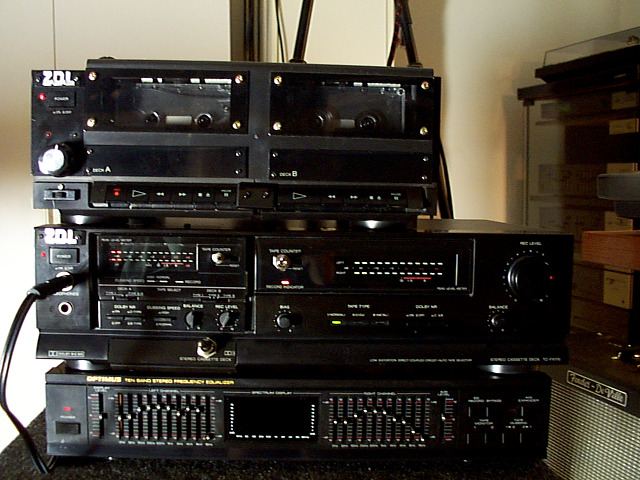

ZDL CTD-105 Setup Photo with Equalizer In Feedback Signal Path
