Dr. ZEE Vintage Electronics and Custom Musical Instruments and Equipment Workshop
Dr. ZEE WORKSHOP Test Equipment.

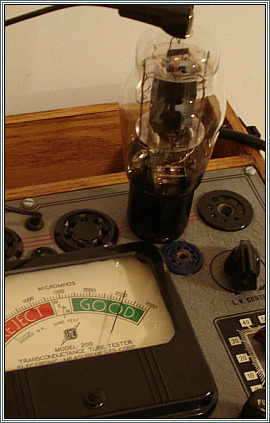

Dr. ZEE Workshop EMC model 200
Mutual Conductance (transconductance) Tube Tester.
Click to View IN THE SHOP PHOTO-GALLERY

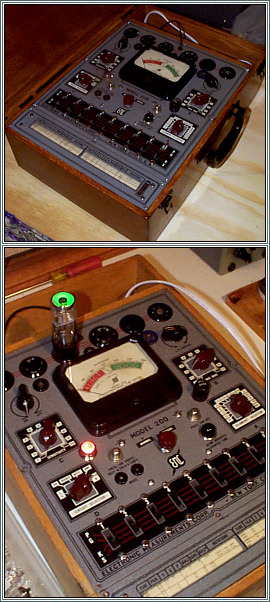

E.M.C. model 200 Mutual Conductance tube tester (sirca 1946 ?)
Manufactured by Electronic Measurements Corp. New York, NY, USA.

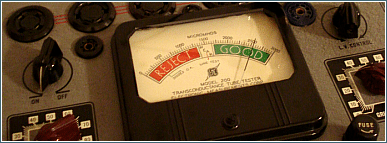

Model 200 can check tubes for shorts and for quality by measuring transconductance of a tube on a "Reject-Good" or on a microhmos scales.
Amplifier tubes can also be checked for gas content and noise.
Tests Diodes, rectifiers, Balast and Voltage Regulator Tubes.
Contains 6H6 rectifier tube. Designed for 105-135 VAC / 60Hz power.

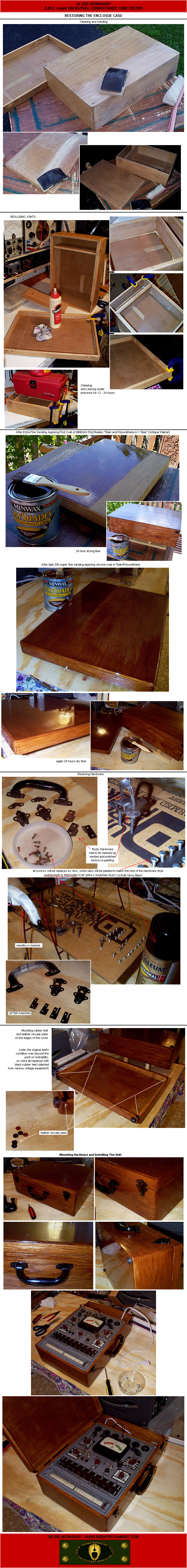

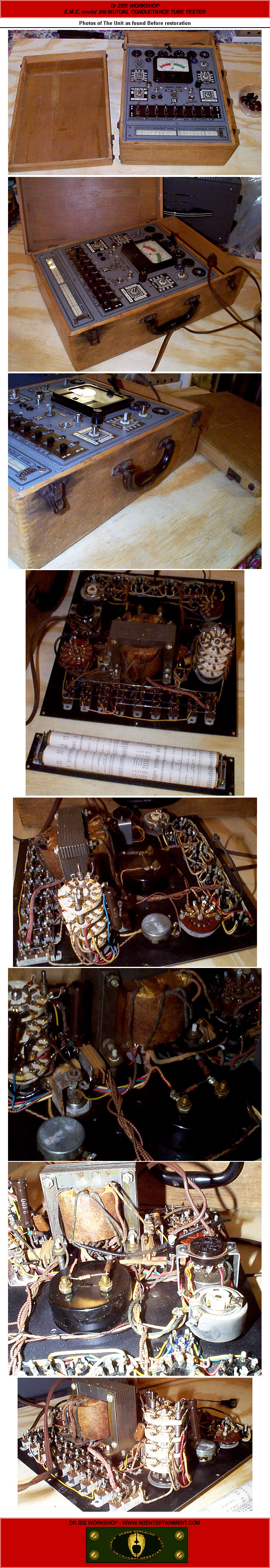

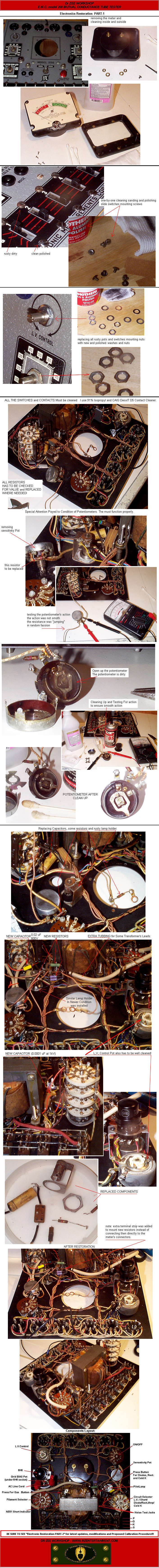

Electronically and cosmetically restored by Mike Zee aka Dr. ZEE.

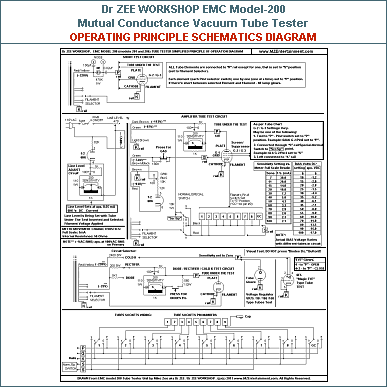

EMC Model-200 Tube Tester Operating Principle Schematics Diagram
