Dr. ZEE Workshop ANALOG SEQUENTIAL CONTROLLER

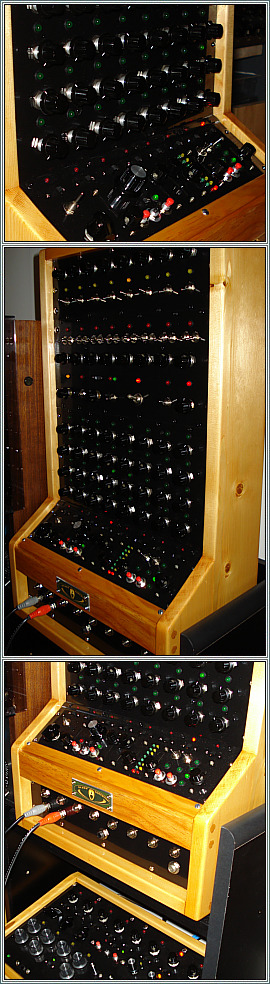

ASC-1 Pluss 8x4x8x8 / Trigger, Gate, Vc and Rs Sequencer

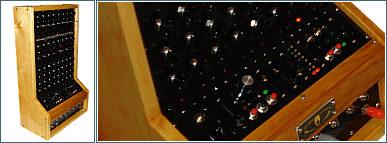

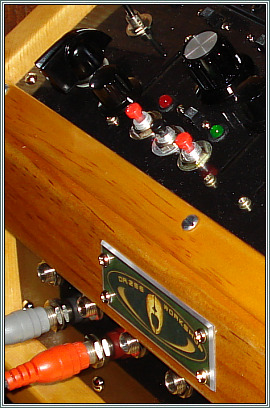

Click To View In The Shop Photo-Gallery
Dr. ZEE WORKSHOP ASC-1 FEATURES:
4x8 (up to 32 step) Resistance Serving (Rs) Sequencer.
8-step Vc Sequencer with 5 ranges: 0-5, 0-7.5, 0-2, 2-5 and 4.5-7.5 Volts
Vc AC/DC option and output level adjustment.
8-step Gate Sequencer with 0-8VDC output adjustment.
8-step Trigger Sequencer with 8 individual 0-8VDC adjustable outputs,
assignable to independently adjustable 0-8VDC Trigger-Mix output.
Stand-Alone or full Remote operation modes.
"LOCAL" mode with three clock options: internal, external or remote.
15-pin D-sub port for remote operation and
integration with RSVC 8x4 Analog Sequencer.
External Clock (pulse) Input, Master Clock (pulse) Output,
Manual Step Pulse Output, Sequencer Reset and Enable Outputs.
5-pin Integrated Sequential Port (ISP) (Rs, Vc, Gates, Trigger-Mix OUTs) for
metering / monitoring /Rs-to-Vc conversion with ISP-equipt meter unit:
Sequential Controller Satellite (SC-S) Test Meter Unit.
***********
ALSO SEE: 4-Channel AUDIO TO GATE / TRIGGER and Vc CONVERTER
***********
Watch ASC-1 Sequential Controller / Drum-Synth IN-ACTION VIDEO [.wmv]
RAW-BEAT-QUAD, ASC-1 Complex Set-Up Demonstration VIDEO [.wmv]
WATCH MORE VIDEOs / LISTEN TO mp3 AUDIO SAMPLES - [GO HERE!]
- IN THE MAKING -
(Click on Titles below to view detailed Photos/Charts and Descriptions)

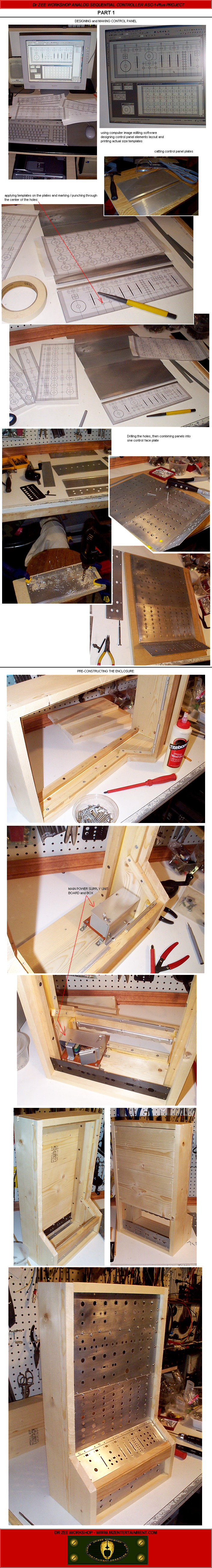

ANALOG SEQUENTIAL CONTROLLER ASC-1 PROJECT - [PART-1]
ANALOG SEQUENTIAL CONTROLLER ASC-1 PROJECT - [PART-2]

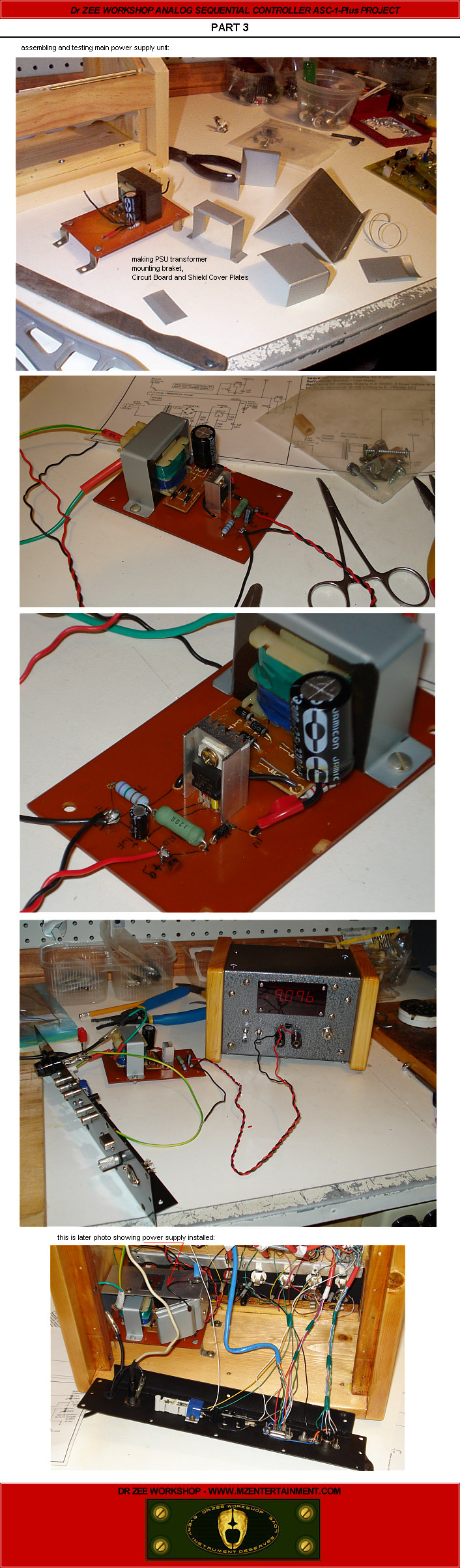

ANALOG SEQUENTIAL CONTROLLER ASC-1 PROJECT - [PART-3]
ANALOG SEQUENTIAL CONTROLLER ASC-1 PROJECT - [PART-4]

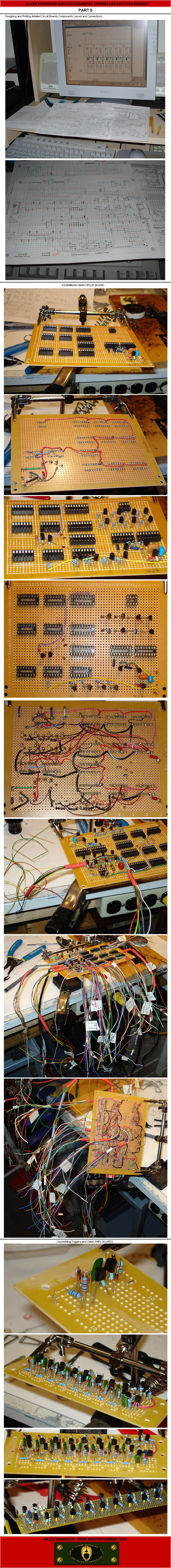

ANALOG SEQUENTIAL CONTROLLER ASC-1 PROJECT - [PART-5]
ANALOG SEQUENTIAL CONTROLLER ASC-1 PROJECT - [PART-6]

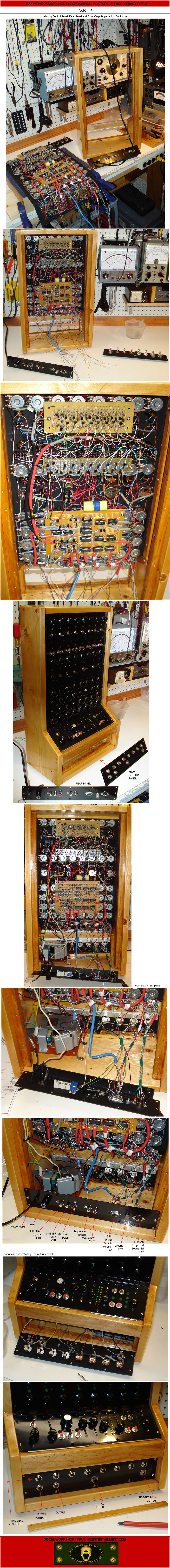

ANALOG SEQUENTIAL CONTROLLER ASC-1 PROJECT - [PART-7]

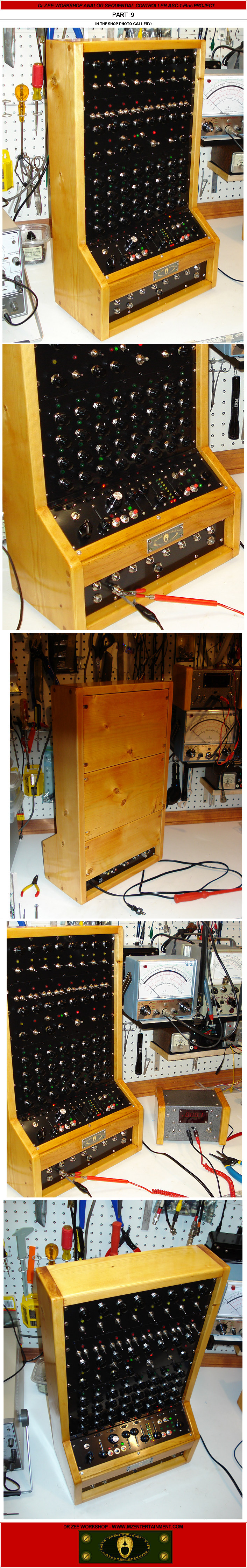

ANALOG SEQUENTIAL CONTROLLER ASC-1 PROJECT - [PART-8]
ANALOG SEQUENTIAL CONTROLLER ASC-1 - [IN THE SHOP GALLERY]
ANALOG SEQUENTIAL CONTROLLER ASC-1 [IN THE STUDIO GALLERY]
TECHNICAL INFORMATION:
ANALOG SEQUENTIAL CONTROLLER ASC-1 SCHEMATICS DIAGRAM

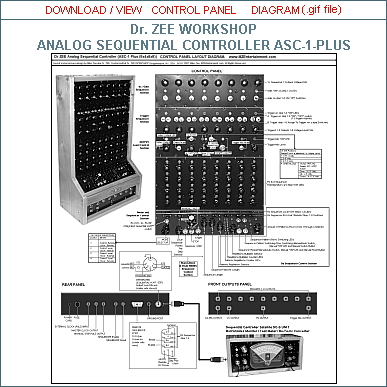

ANALOG SEQUENTIAL CONTROLLER ASC-1 CONTROL PANEL DIAGRAM

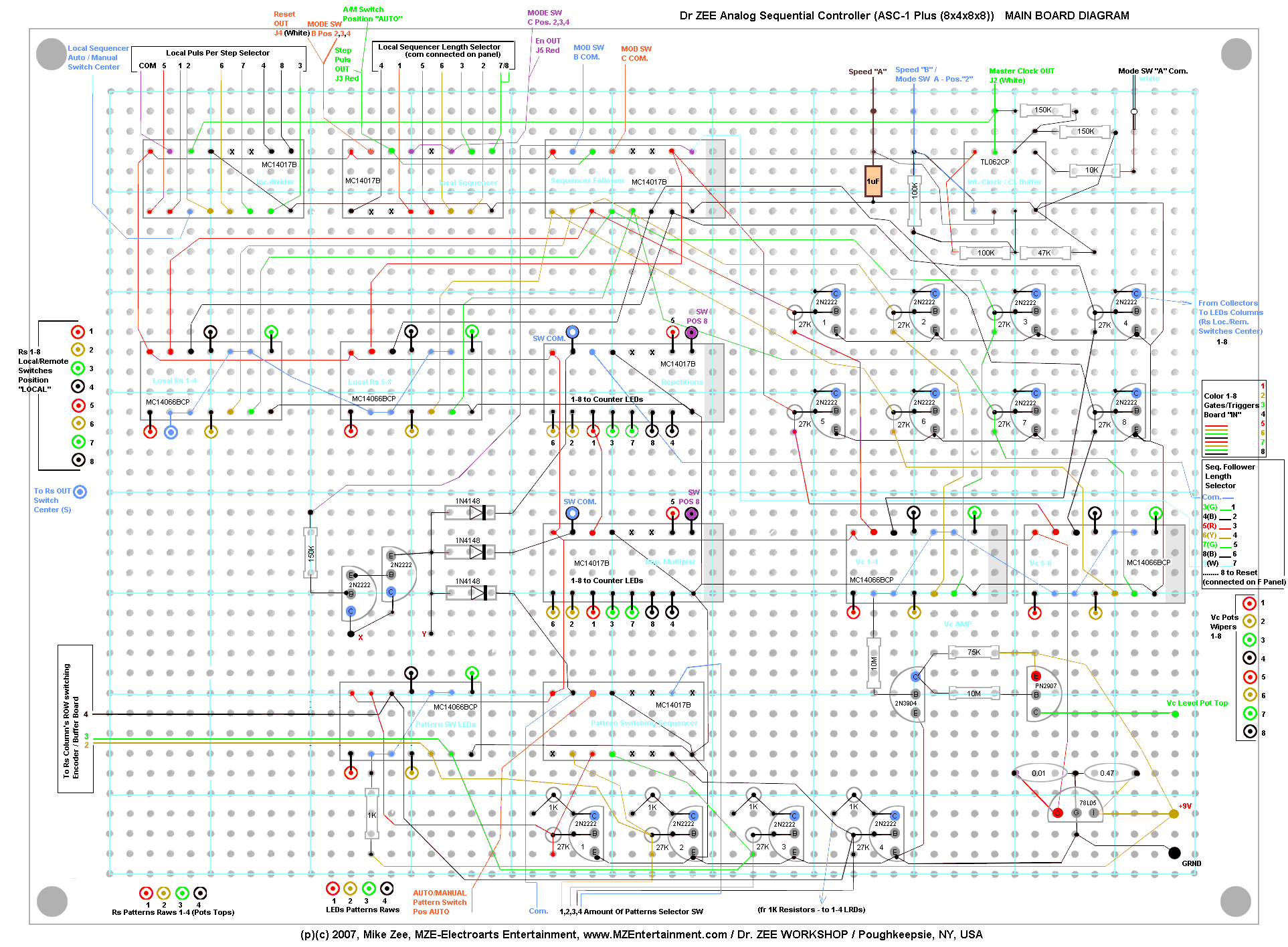

ANALOG SEQUENTIAL CONTROLLER ASC-1 - MAIN BOARD LAYOUT

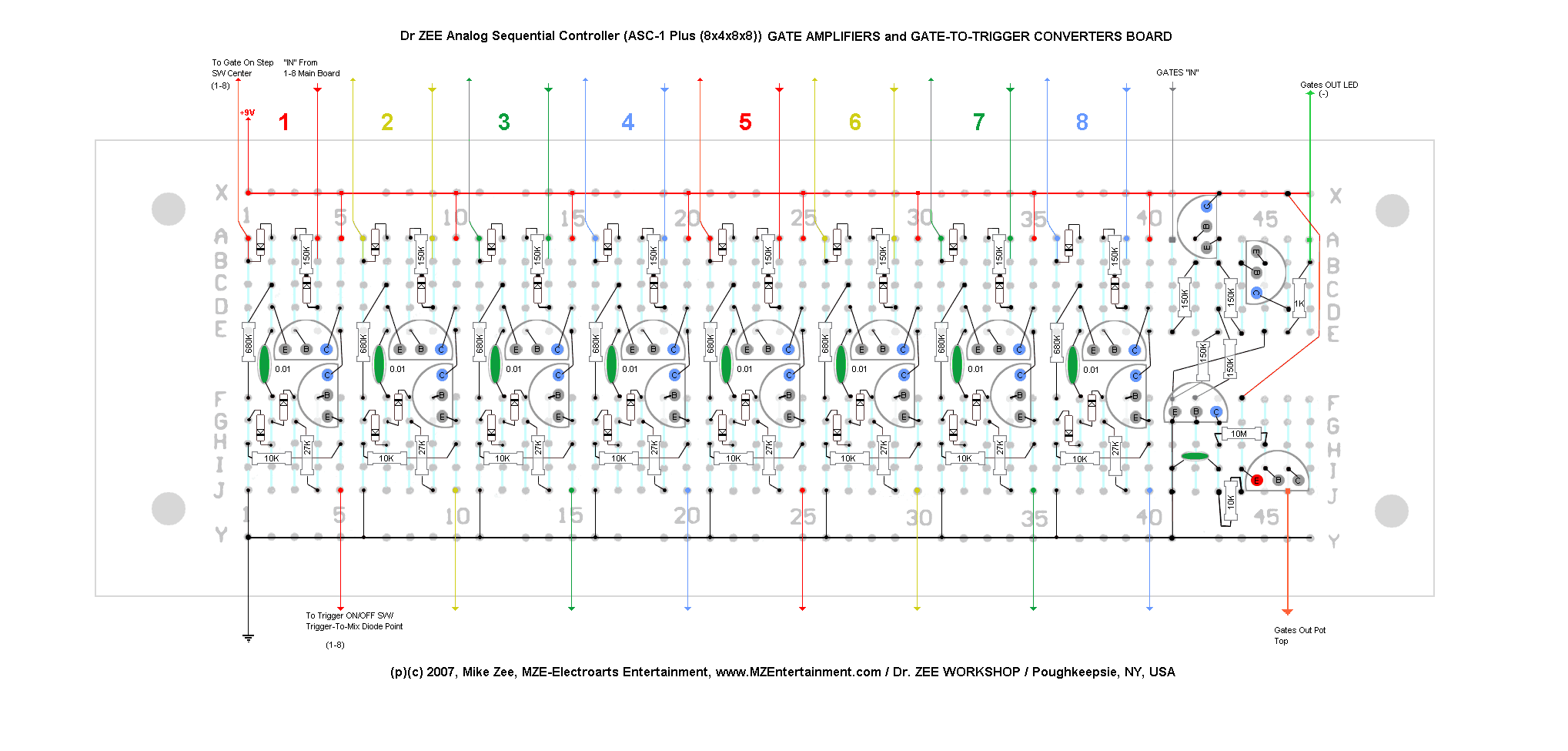

ANALOG SEQUENTIAL CONTROLLER ASC-1 - Gate Amps BOARD LAYOUT

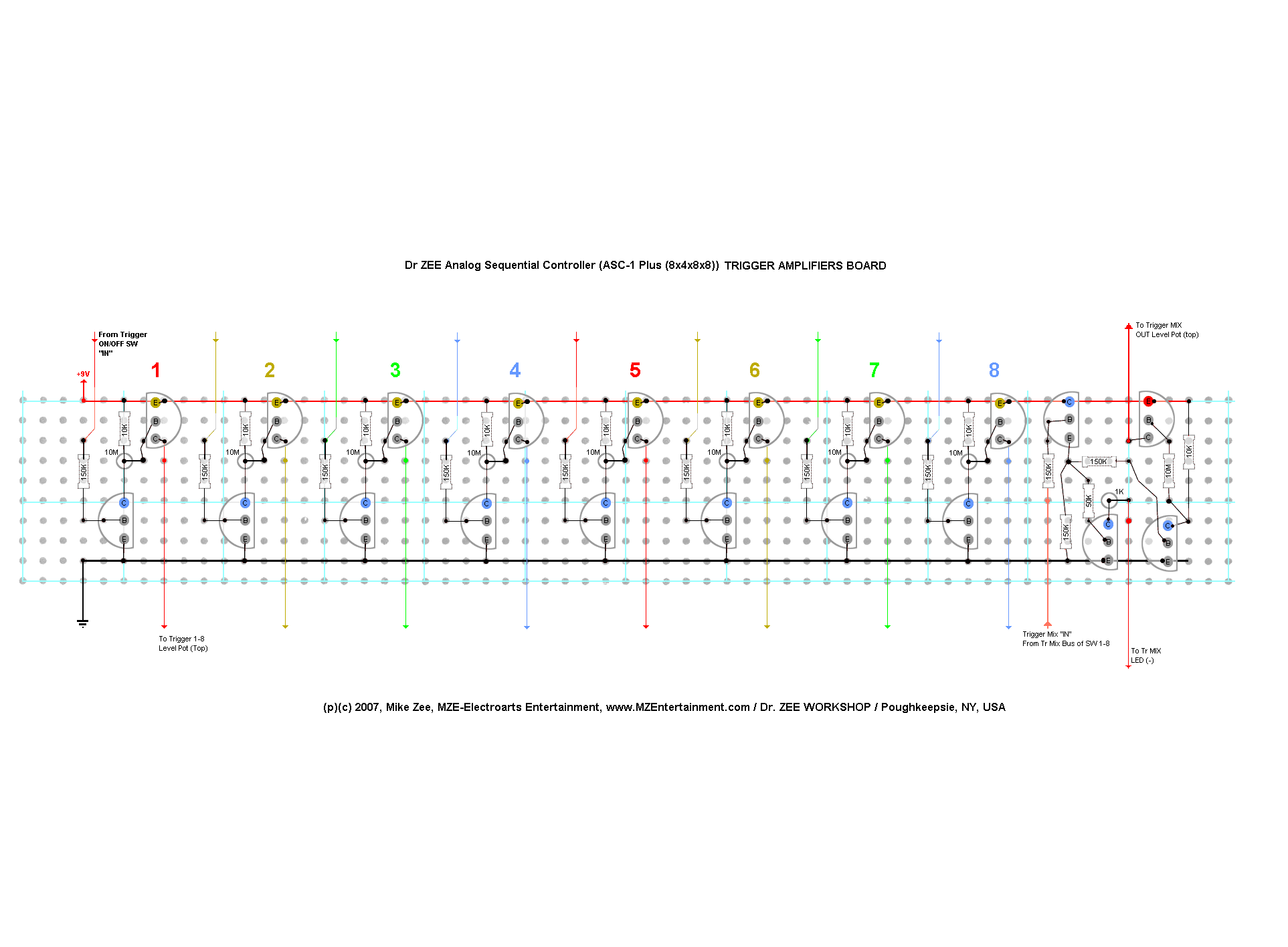

ANALOG SEQUENTIAL CONTROLLER ASC-1 - Trigger Amps BOARD LAYOUT

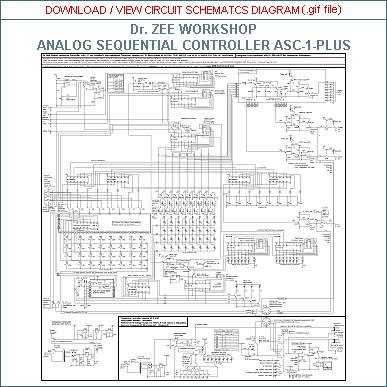

CLICK to download and view Schematics Circuit Diagram
CLICK to download and view Control Panel Layout Diagram and Details
