Dr. ZEE Workshop SOURCE-ONE ANALOG SYNTHESIZER and
8-step Resistance Serving / 4-step Control Voltage Sequencer

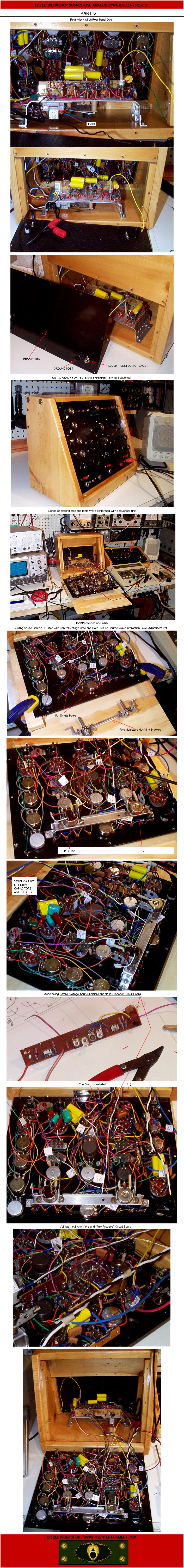

Dr. ZEE SOURCE-ONE ANALOG SYNTHESIZER

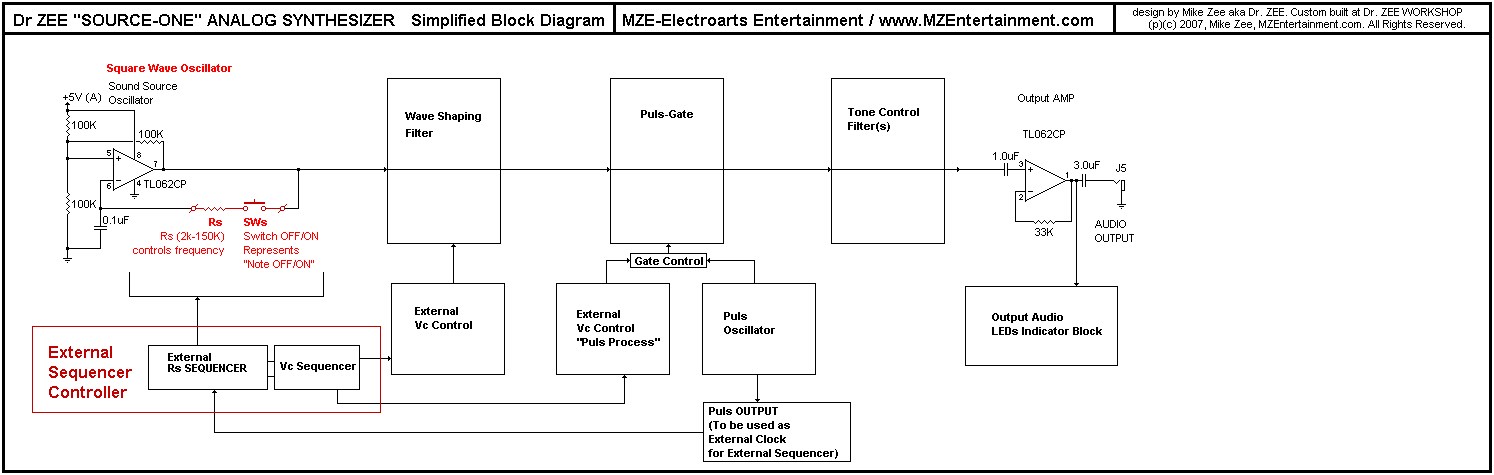

( View SOURCE-ONE Synthesizer Simplified Block Diagram .gif )

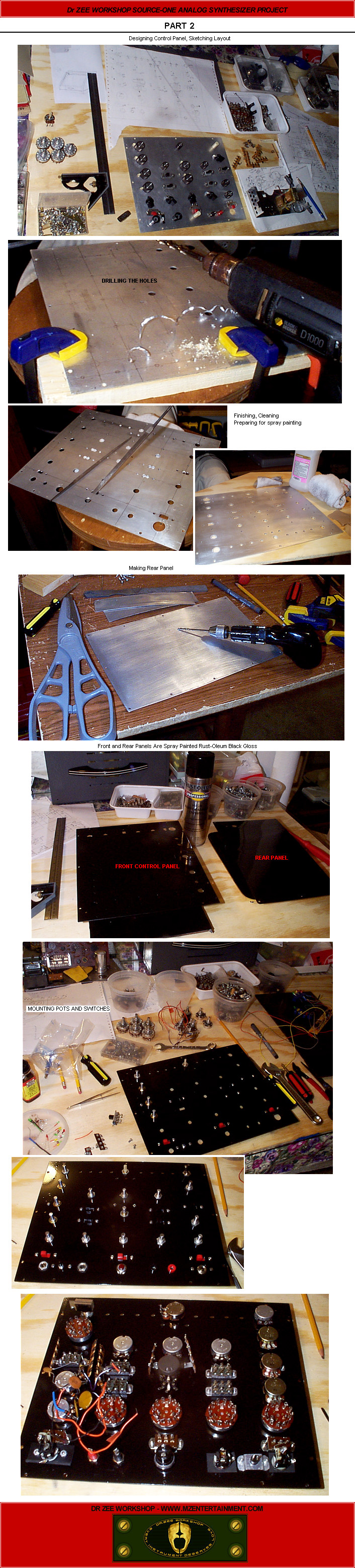

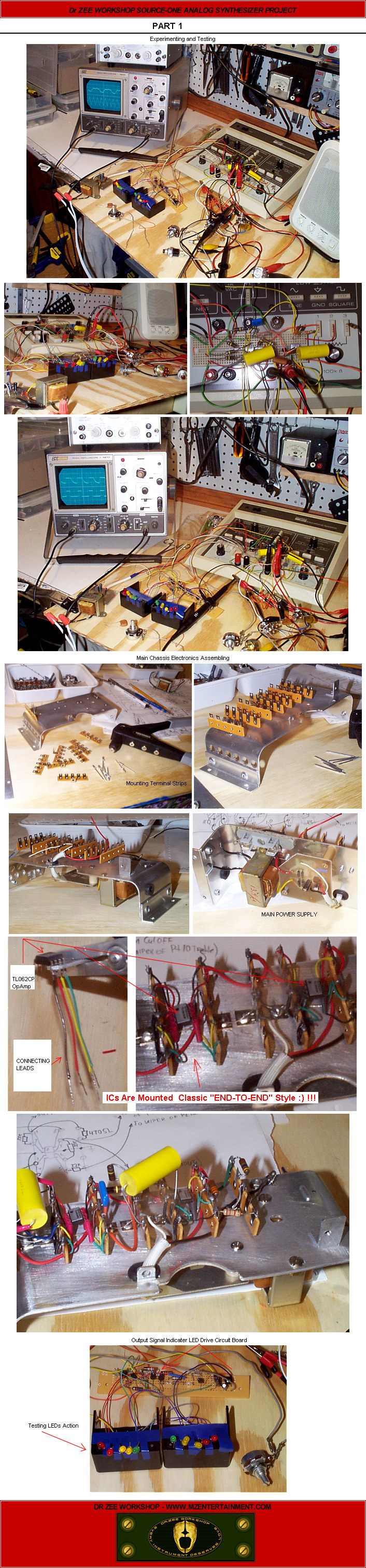

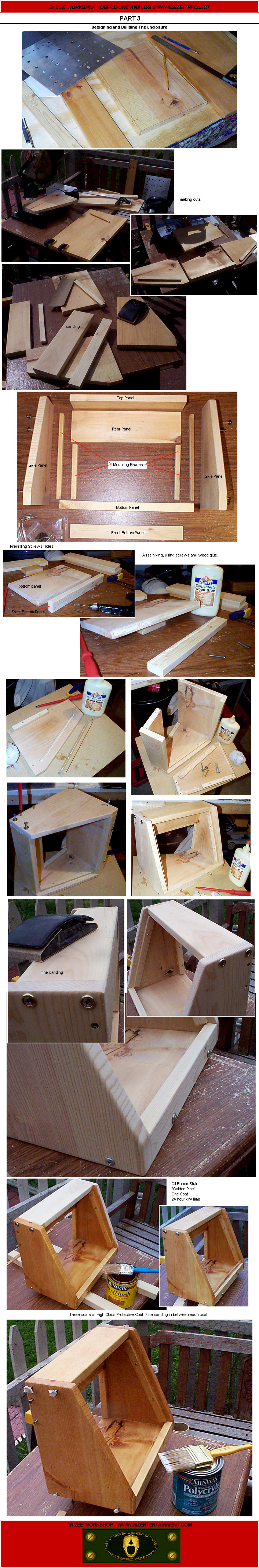

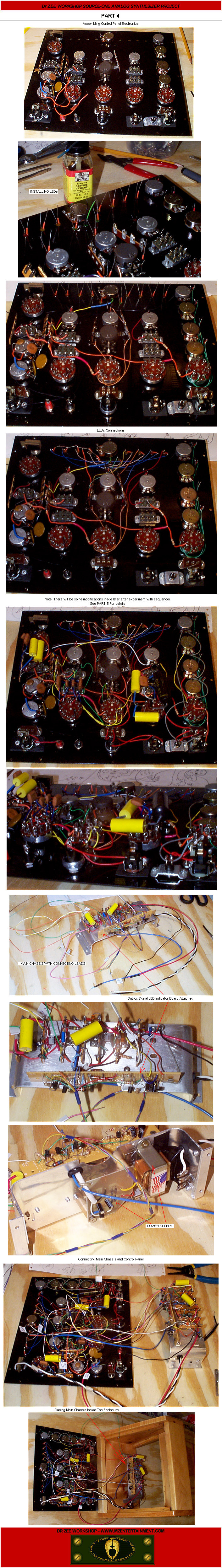

Based on TL062CP OP-AMP square-wave oscillators sound source and
adjustable puls-gate with Vc controlled process option.
Low-Pass and High-Pass audio output signal filters. Additional Sound Source Low Pass filter and experimental original design puls-gate signal filter ("processor"), both of which have independent or linked together Voltage Control input option. The synthesiser can be used as sound-effect (siren-like effect) box or can be controlled by a vary-value resistance serving sequencer and/or Control Voltage sequencer.

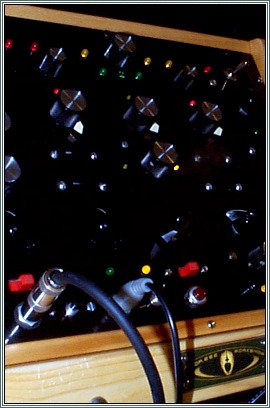

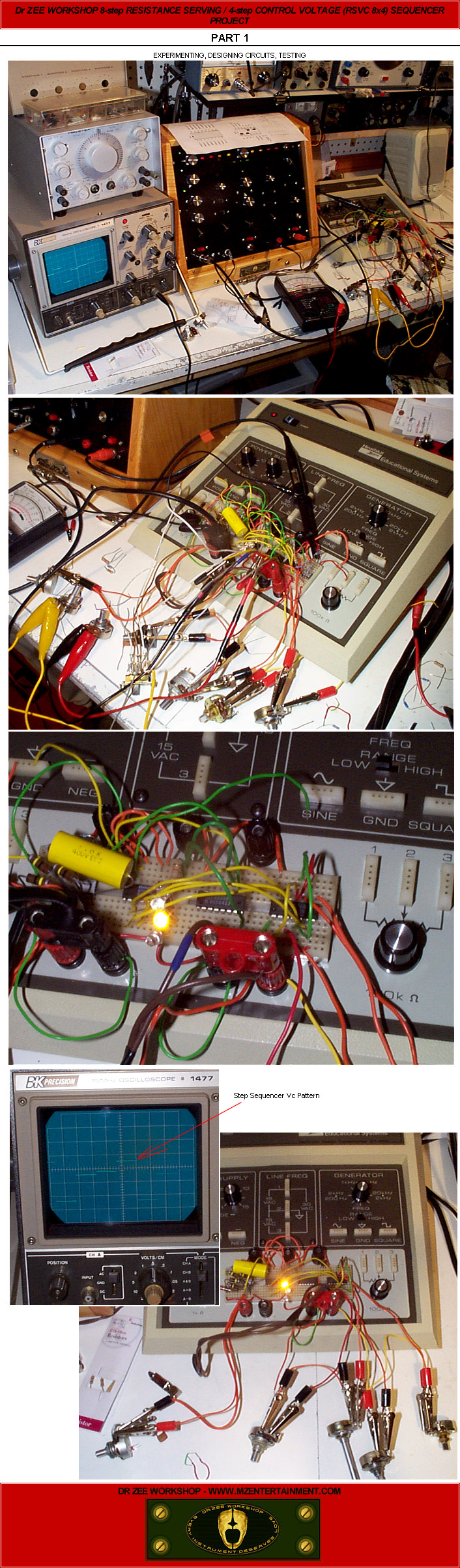

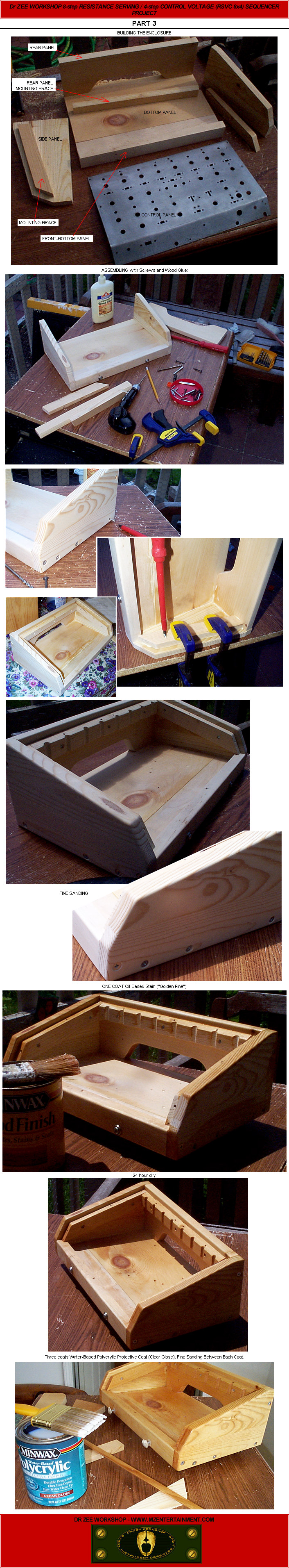

Dr. ZEE RSVC-8x4 SEQUENCER / ARPEGGIATOR.

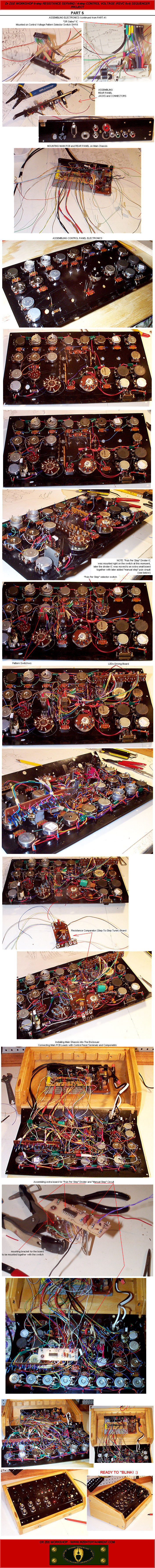

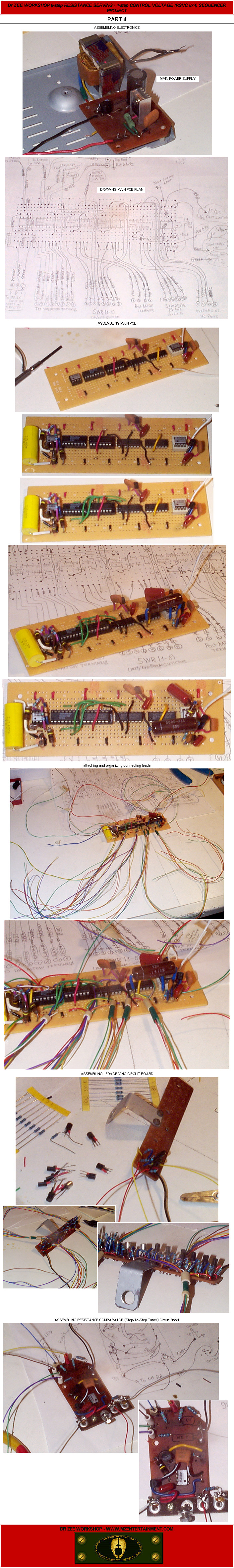

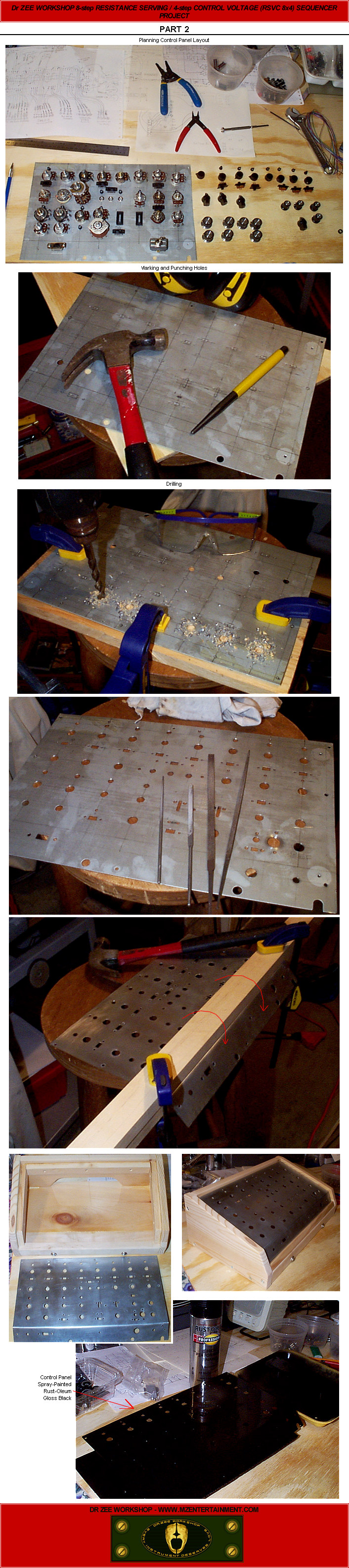

8-step vary-value Resistance Serving Sequencer with internal or external puls (clock) option. Selectable sequence length (from 2 to 8 step). Auto or manual step operation. Three position pattern alternation switch. Built-In original design resistance comporator ("step tuner") circuit. Four step DC Control Voltage (or AC Wave-Shape) sequencer ("Wave Shaper") with voltage "swing" control and puls shaping option and three pattern types.
15-pin port for integration Pattern Sequencer:
Dr. ZEE WORKSHOP ANALOG SEQUENTIAL CONTROLLER ASC-1-PLUS
Designed, constructed and assembled by Mike Zee aka Dr. ZEE.
LISTEN TO mp3 AUDIO SAMPLES - [GO HERE!]
WATCH VIDEO-CLIPS IN ACTION - [GO HERE!]

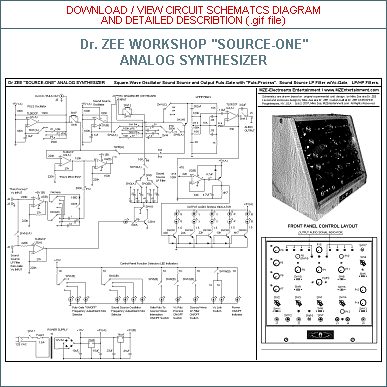

CLICK to download and view Schematics Circuit Diagram and Control Layout Details

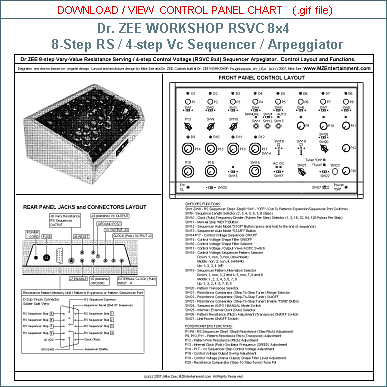

CLICK to download and view Control Panel Layout Diagram and Details

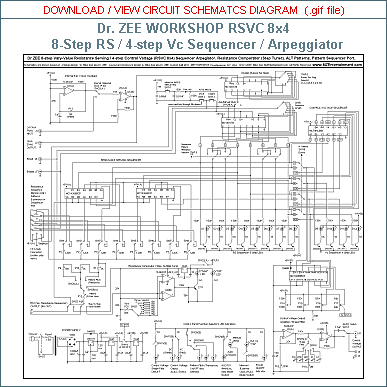

CLICK to download and view Schematics Circuit Diagram
